Description
WelsonPower offers both NCM (Nickel Cobalt Manganese) and LFP (Lithium Iron Phosphate) battery cells. Our NCM cells, commonly known as 18650 cells, come in four models: 1800mAh, 2000mAh, 2200mAh, and 2600mAh.
For our LFP cells, we provide three main types: cylindrical cells, prismatic cells, and pouch cells. Our cylindrical LFP cells include two models: the cylindrical 6Ah WSP-32700-6Ah and the cylindrical 15Ah WSP-321400-15Ah.

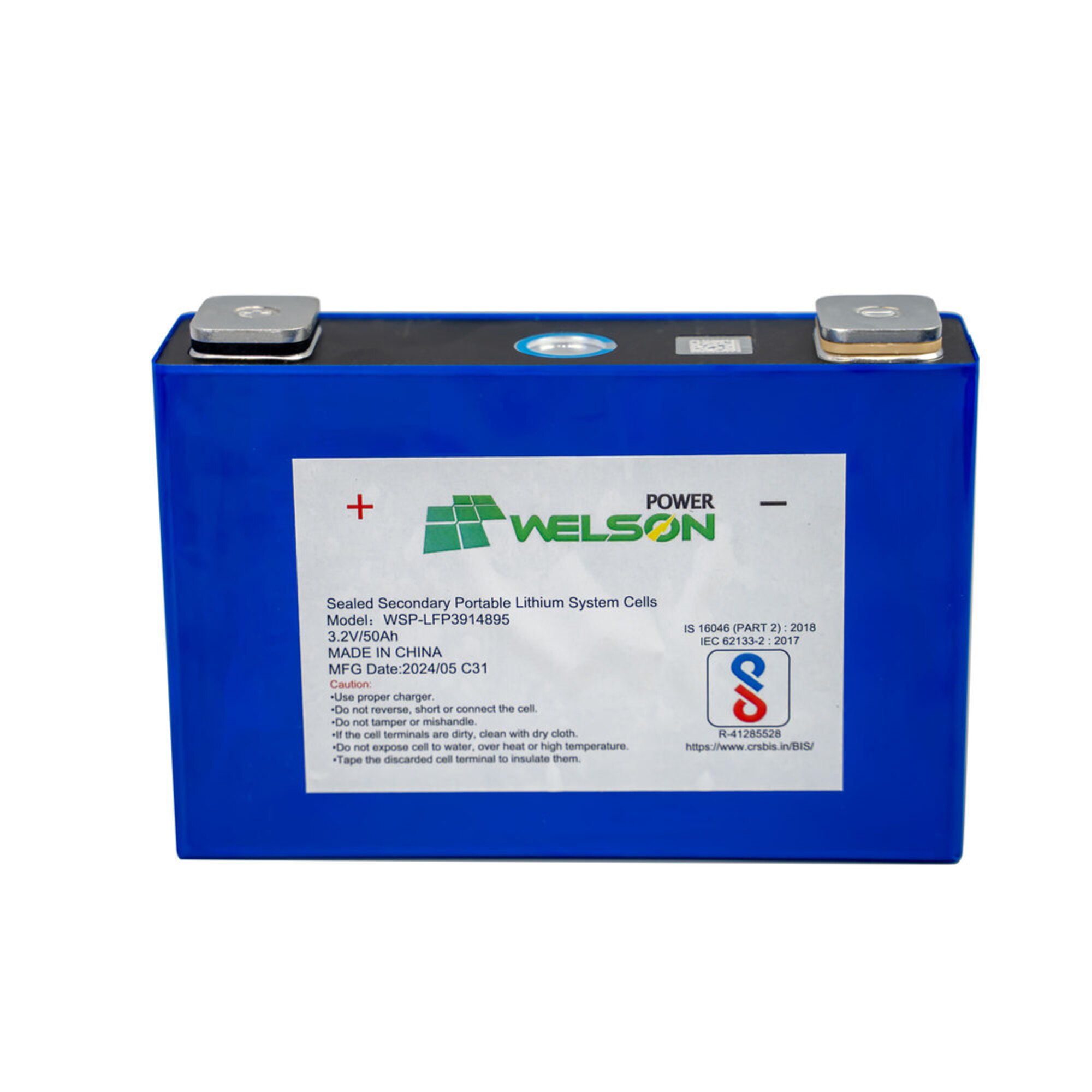

Our prismatic LFP cells are our flagship product series, with capacities ranging from 30Ah, 50Ah, 100Ah, 110Ah, 150Ah, 165Ah, to the largest 280Ah.
In addition, we offer LFP pouch cells in several models, including 20Ah, 25Ah, 30Ah, 40Ah, and 50Ah.
We are continuously developing new products in various sizes and capacities. We welcome all module and pack manufacturers to consult with us for their specific needs.
Cells Specifications
| Item Description | Specification |
| Rated Capacity | 50Ah@1C |
| Minimum Capacity | 50Ah@1C |
| Nominal Voltage | 3.2V |
| Charging Method | CC/CV |
| Charging Voltage | 3.65V |
| End-of-Charge Current | CV Mode:0.05C（2.5A） |
| Discharge Ending Voltage | 2.5V |
| Standard Charge Current | 1C(50A) |
| Maximum Continuous Charge Current | 1C(50A) |
| Maximum Pulse Charge Current | 2C(100A) , 10S |
| Standard Discharge Current | 1C(50A) |
| Maximum Continuous Discharge Current | 2C(100A) |
| Maximum Pulse Discharge Current | 3C(150A) , 30S |
| Recommend SOC Window | 10%~90% |
| Operating Temperature Range | Charging Temperature:0~50℃ |
| Discharging Temperature:-20~60℃ | |
| Storage Temperature（3 months）:-20~45℃ | |
| Storage Temperature（1year）: -20~25℃ | |
| Optimal Temperature：15~35℃ | |
| AC Impedance | ≤0.8mΩ (AC Impedance, 1000Hz) |
| Weight | 1100±50g |
Advanced Features of Lithium Iron Phosphate (LFP) Cells
-
Exceptional Thermal Stability: LFP cells exhibit excellent thermal stability, ensuring safe operation even under extreme temperature conditions, which enhances overall battery safety and reliability.
-
High Discharge Rate Capability: Capable of delivering high discharge rates without compromising performance, making them ideal for applications requiring quick bursts of power.
-
Extended Shelf Life: LFP cells have a low self-discharge rate, allowing for prolonged storage periods without significant capacity loss, ensuring readiness and reliability when needed.
-
Enhanced Cycle Efficiency: These cells maintain high cycle efficiency, providing consistent performance over a large number of charge and discharge cycles, which translates to longer service life and reduced maintenance.
-
Scalable Energy Solutions: The modular nature of LFP cells supports scalable energy solutions, allowing for easy integration into various applications from small-scale systems to large energy storage projects.
-
Eco-Friendly Composition: LFP cells use non-toxic and more environmentally friendly materials compared to other battery chemistries, contributing to greener and more sustainable energy solutions.

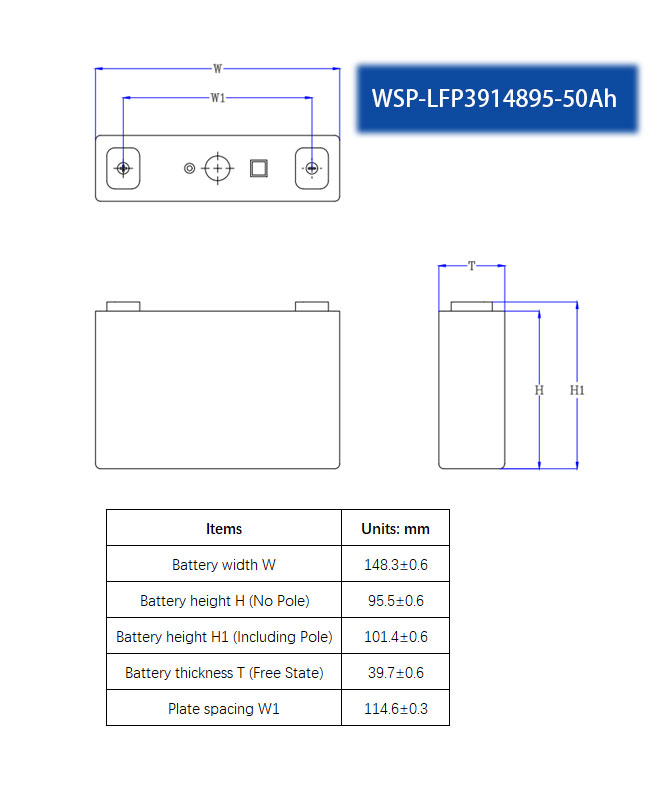

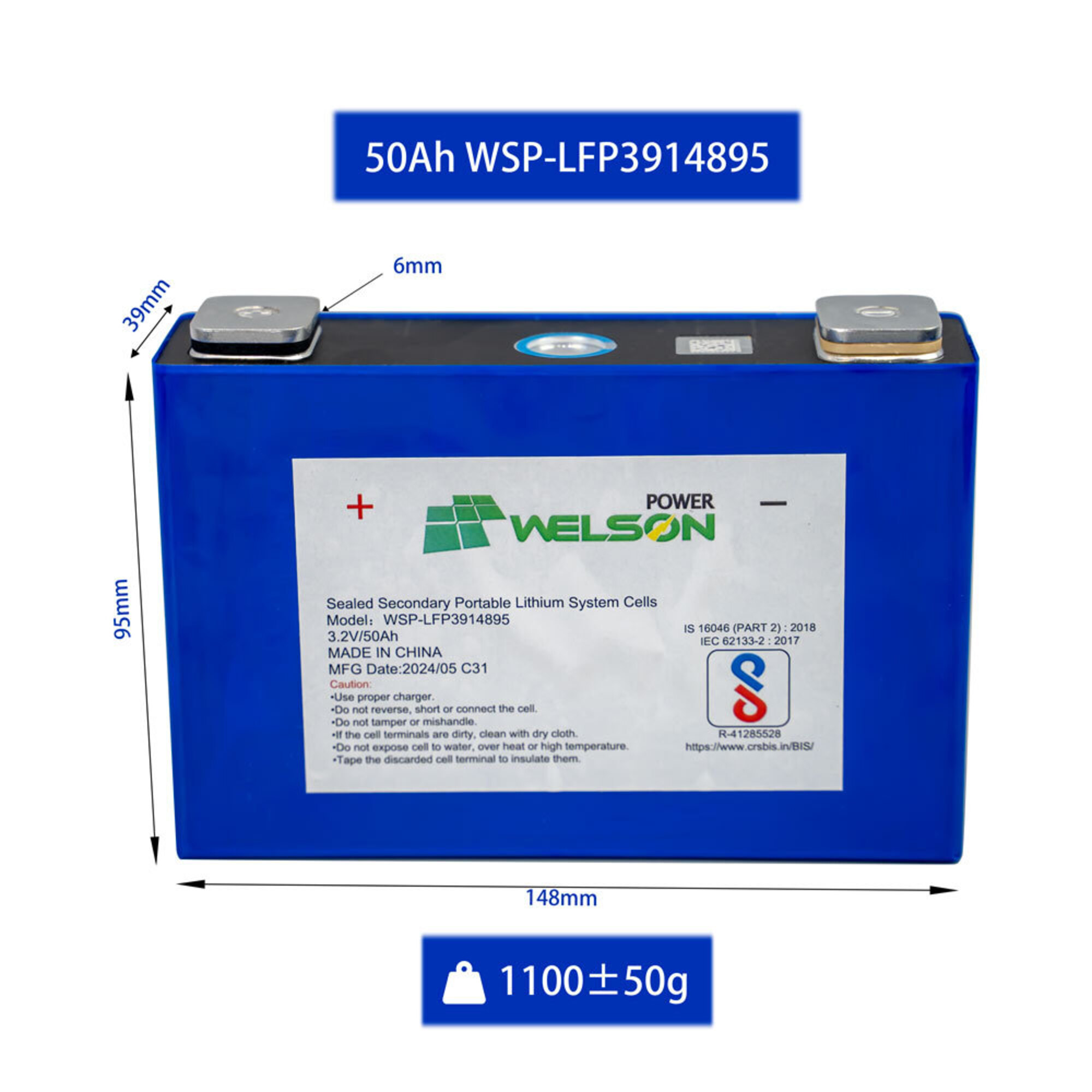

Dimension
Discharging Curve
Stud Terminal:
All standard batteries are shipped without stud terminals, but we do offer the option of separate stud terminals at an additional cost to the customer. The customer purchases the separate stud terminals and then welds the studs to the cell themselves using laser welding equipment.

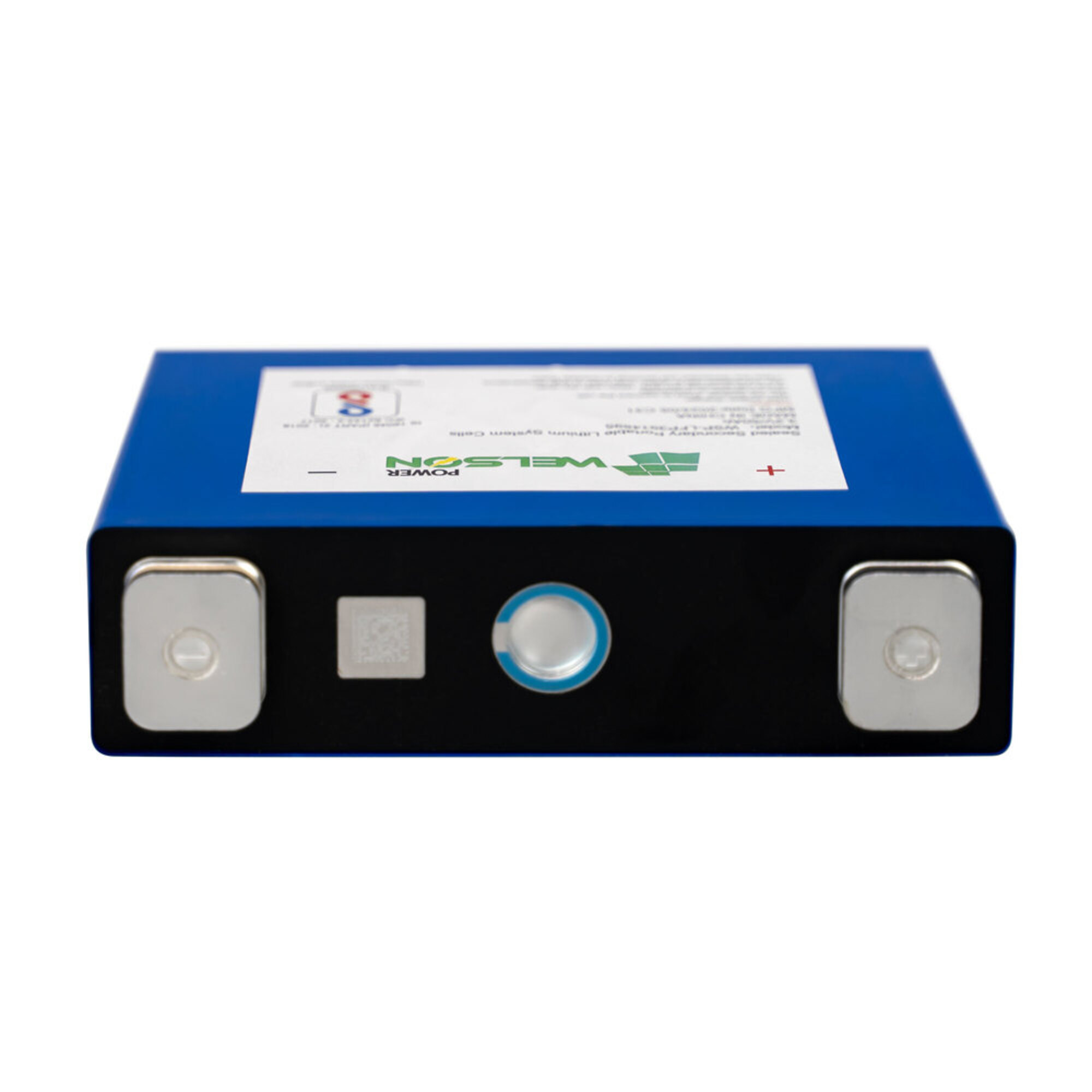

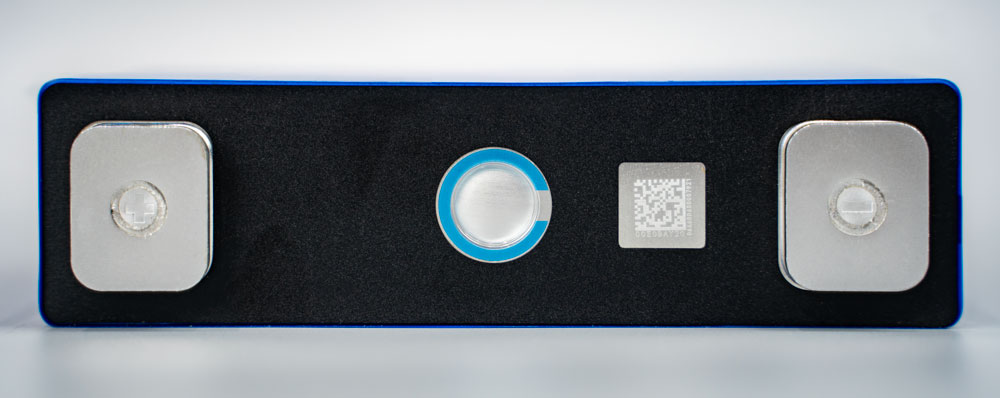

prismatic battery positive and negative poles (without Screws Termial)
