Description
| Item Description | Specification |
| Rated Capacity | 6000mAh@0.5C |
| Minimum Capacity | 5950mAh@0.5C |
| Nominal Voltage | 3.20V |
| Charging Method | CC/CV |
| Charging Voltage | 3.65V |
| End-of-Charge Current | CV Mode:0.05C（300mA） |
| Discharge Ending Voltage | 2.0V |
| Standard Charge Current | 0.5C(3000mA) |
| Maximum Pulse Charge Current | 1.0C(6000mA) |
| Standard Discharge Current | 0.5C(3000mA) |
| Maximum Continuous Discharge Current | 1.0C(6000mA) |
| Maximum Pulse Discharge Current | 2.0C(30s) |
| Storage Voltage | 3.20~3.30V |
| Recommend SOC Window | 10%~90% |
| Operating Temperature Range | Charging Temperature:0~60℃ |
| Discharging Temperature:-20~60℃ | |
| Storage Temperature（1 year）:-20~45℃ | |
| AC Impedance | ≤12mΩ |
| (AC Impedance, 1000Hz) | |
| Weight | 140g±5g |
Characteristic:
1. Long cycle life:
2. High safety
3. High Energy Density
4. Good charging and discharging performance;
5. Wide working temperature range
WelsonPower advanced technology to produce lithium-ion batteries. The products have low pollution, high performance and high reliability.
Dimension
| items | Units:mm |
| Diameter | 32.2±0.5 |
| Height | 70.0±0.5 |

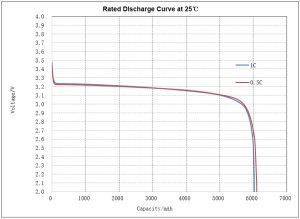

Discharging Curve
