Description
Cell specification
| Item Description | Specification |
| Rated Capacity | 12.0Ah@0.5C |
| Minimum Capacity | 11.5Ah@0.5C |
| Nominal Voltage | 3.20V |
| Charging Method | CC/CV |
| Charging Voltage | 3.65V |
| End-of-Charge Current | CV Mode:0.05C（600mA） |
| Discharge Ending Voltage | 2.0V |
| Standard Charge Current | 0.5C(6A) |
| Maximum Continuous Charge Current | 1.0C(12A) |
| Standard Discharge Current | 0.5C(6A) |
| Maximum Continuous Discharge Current | 1.0C(12A) |
| Storage Voltage | 3.20~3.30V |
| Recommend SOC Window | 10%~90% |
| Operating Temperature Range | Charging Temperature:0~55℃ Discharging Temperature:-20~60℃ Storage Temperature（1 year）:-10~25℃ |
| AC Impedance | IR≤3.0mΩ (AC Impedance, 1000Hz) |
| Weight | 268±10g |
Characteristic:
1. Long cycle life:
2. High safety
3. High Energy Density
4. Good charging and discharging performance;
5. Wide working temperature range
WelsonPower advanced technology to produce lithium-ion batteries. The products have low pollution, high performance and high reliability.

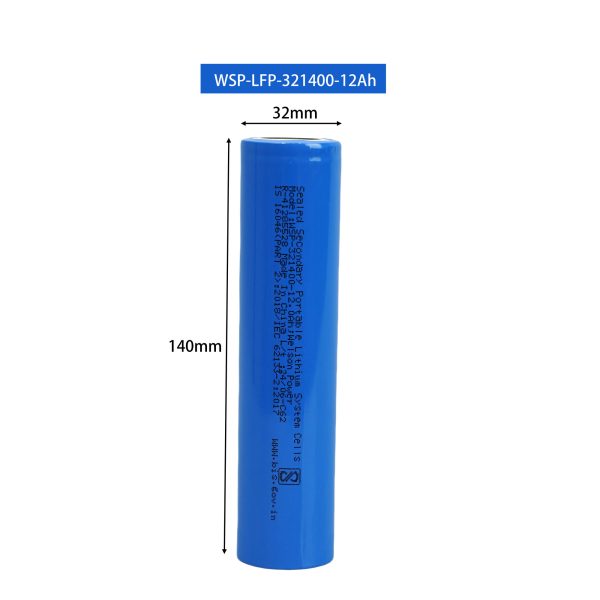

Dimension
| Items | Units: mm |
| Diameter | 32 |
| Height | 140 |
Discharging Curve
